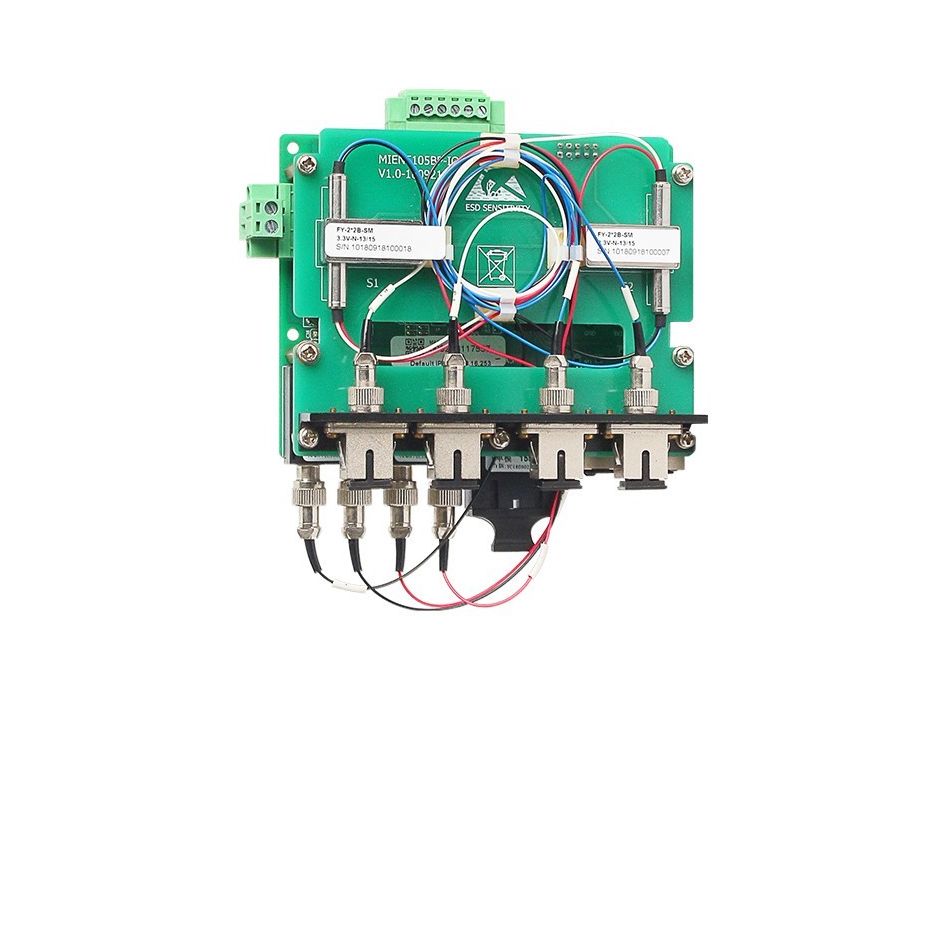

MIEN5105BP-2TS, 3x100M FX +2 RS485 veya CAN Bus BY-PASS embedded Managed Switch
3x100M fiber port +2 RS485 veya CAN bus arayüze sahip, By-pass Embedded Managed Endüstriyel Ethernet Switch
-Support 3x100M fiberports+2x10/100M copperports
-Support 2 way RS485/CAN available filed bus data interface.
-Support By-Pass patent redundant technique
-Support static multicast filtering , IGMP Snooping;
-Support broadcast storm suppression and port rate control
-Support industrial dual power input backup
-Support independent dual redundant power supply configuration,
-support power-down, fiber-losing, storm alarm output;
-Support managed function such as VLAN, QoS, Trunking, and port mirroring;
-Wide temperature range design ,fanless thermal design.
|
Technical specifications |
|
|
Ethernet Standard |
IEEE802.3 (Ethernet), IEEE802.3u (100Base-TX and 100Base-FX), IEEE802.3x (flow control), IEEE802.3z (1000Base-LX), IEEE802.3ab (1000Base-T), 802.1P. |
|
Switch properties |
|
|
MAC table |
8k |
|
Switch Bandwidth |
1.2Gbps |
|
Switch Latency |
<5μs |
|
Interface |
|
|
Copper port parameters |
Physical interface: RJ45 with shield, IEEE802.3 standard |
|
RJ45 port: 10 /100Base-T, supports auto-negotiation function. |
|
|
Transmission distance: <100 meters |
|
|
Fiber port parameters |
Fiber: Multimode 850nm / 2Km Multimode 1310nm / 2Km Single mode 1310nm / 20/40/ 60Km Single mode 1550nm / 80 /100Km |
|
Power Requirements |
|
|
Power input |
DC5-32V |
|
Input power consumption |
3.67W (@ 24V) |
|
Overcurrent protection |
built-in |
|
Overload protection |
support |
|
Inversed protection |
support |
|
Redundancy protection |
support |
|
Working Environment |
|
|
Operating Temperature |
-20°C~70°C |
|
Storage temperature |
-40°C~85°C |
|
Ambient Humidity |
5%~95%( non-condensing) |
|
Physical Characteristics |
|
|
Dimension |
39mm×90mm×114mm |
|
Industry standard |
|
|
EMC |
EN61000-4-2（ESD）,Level 4 EN61000-4-3（RS）,Level 4 EN61000-4-4（EFT）,Level 4 EN61000-4-5（Surge）,Level 4 EN61000-4-6（CS）,Level 4 EN61000-4-8,Level 5 |
|
Impact |
IEC60068-2-27 |
|
Falling |
IEC60068-2-32 |
|
Shock |
IEC60068-2-6 |
|
Warranty |
|
|
Warranty period |
5 Years |
|
Certification |
CE, FCC, RoHS |
|
NAME |
VERSION |
DOWNLOAD |
|---|---|---|
|
Version 1.1 |
|
|
Ordering information |
|
|
MIEN5105BP-3F(M/S)-2D485 |
3x100M fiber port+2x100M copper ports+2 way RS485, single power in standard |
|
MIEN5105BP-3F(M/S)-2CAN |
3x100M fiber port+2x100M copper ports+2 way CAN ports, single power in standard |
| Kodu | Model | Açıklama |
|---|---|---|
| MIEN5105BP-2TS | MIEN5105BP-2TS | MIEN5105BP-2TS, 3x100M FX +2 RS485 veya CAN Bus BY-PASS embedded Managed Switch |
