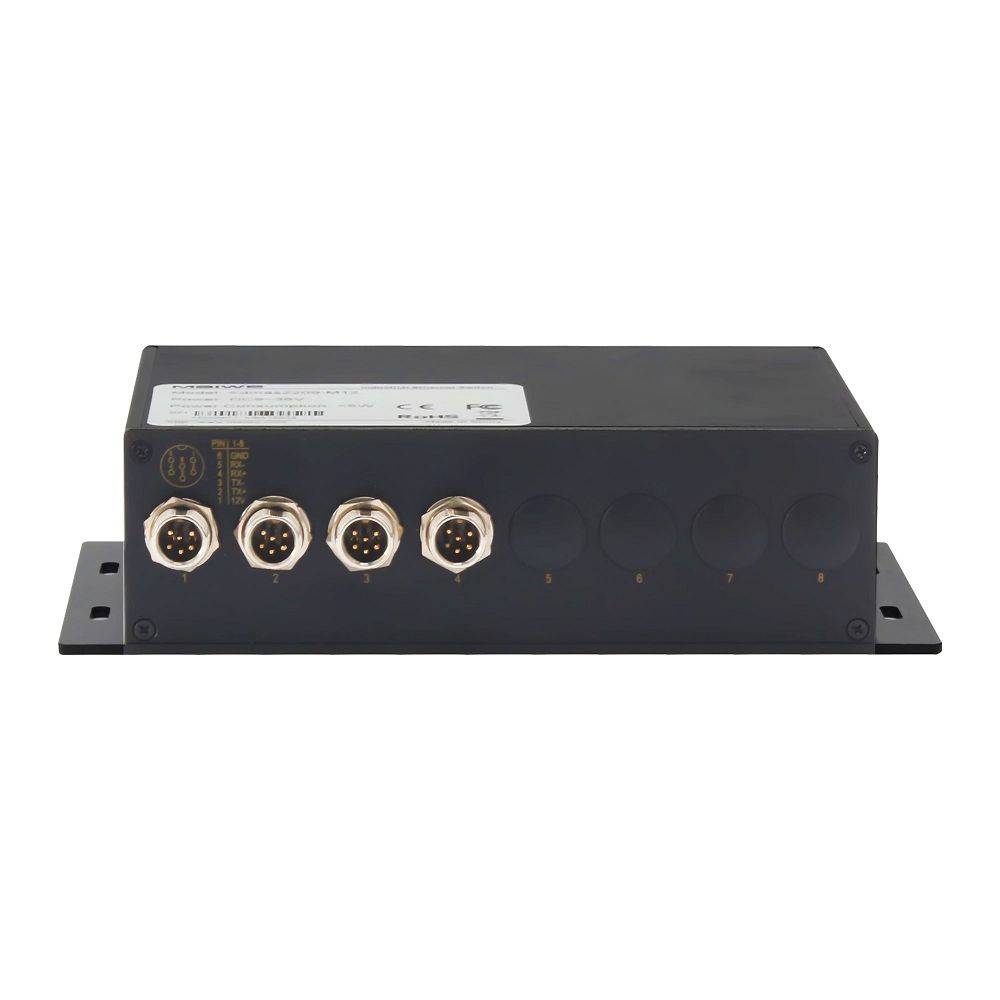

Admas2209-M12, 9x100M M12 Layer2 Switch
9-port 100M M12 Layer 2 Duvar (taban sacı) Montaj Endüstriyel Ethernet Switch
- Tüm bağlantılar için, M12 vidalı soketli bağlantı ile yüksek güvenlik
- EN50155 standardı iel tam uyumluluk
- Güç kesilmesi durumunda alarm kontak çıkışı
- -40 ~ 70°C çalışma sıcaklık aralığı
- IP40 koruma sınıfı
- Metal kasa
|
Technical parameters |
|
|
Ethernet standard |
IEEE802.3i-10BaseT, IEEE802.3u-100BaseTX/100BaseFX, IEEE802.3x (flow control) |
|
Switch capability |
|
|
MAC address |
2K |
|
Exchange bandwidth |
1.8Gbps |
|
Switch Delay |
<5μs |
|
Interface |
|
|
Gigabit ports |
Port numbers: 9 |
|
Interface form: M12 |
|
|
Interface speed: 10/100M adaptive |
|
|
Console port |
RS232, M12 |
|
Power terminal |
M12 terminal |
|
Communication distance |
|
|
Twisted-pair |
100m(CAT5/CAT5e cable) |
|
LED indicator |
|
|
Rear panel indicator |
Interface indicator: LINK/ACT; SPEED |
|
Power status indicator: PWR |
|
|
Power indicator |
|
|
Input voltage |
Support DC9~36V |
|
Machine power consumption |
<5W@full load |
|
Overload protection |
Support |
|
Reverse protection |
Support |
|
Working environment |
|
|
Operating temperature |
-40°C~85°C |
|
storage temperature |
-40°C~85°C |
|
Relative humidity |
5%~95% (no condensation) |
|
Mechanical structure |
|
|
Shell |
IP60 protection grade, aluminum alloy casing |
|
Installation |
Wall or desktop installation |
|
Size |
195mm × 50.5mm × 104mm |
|
Industry Standard |
|
|
EMC |
EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5 |
|
Shock |
IEC60068-2-27 |
|
Free fall |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Warranty |
|
|
Warranty period |
5 years |
|
Certification |
|
|
CE, FCC, RoHS |
|
| Kodu | Model | Açıklama |
|---|---|---|
| Admas2209-M12 | Admas2209-M12 | M12, 9x100M M12 Layer2 Switch, Aux=9-36Vdc |
