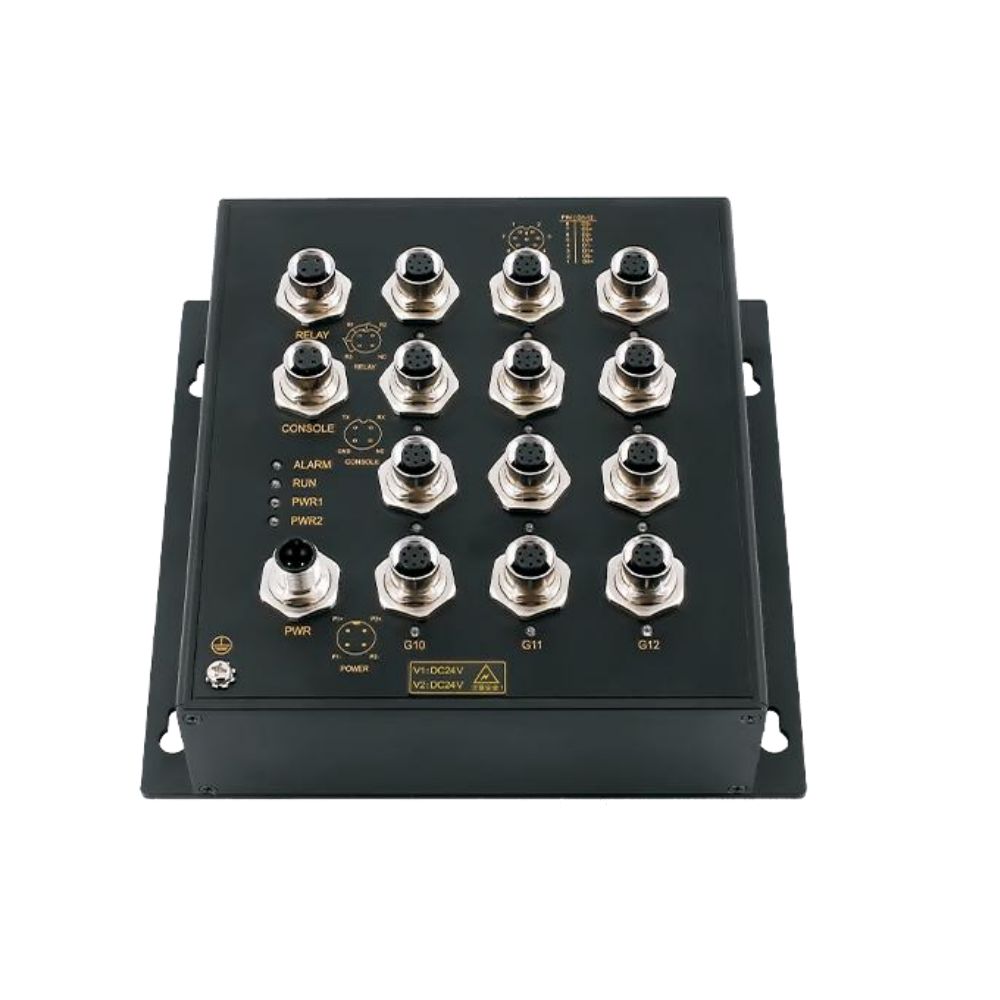

Admas7212G-M12-12GT, 12x1Gbit M12 Layer2 Switch
12 x M12 Port Full Gigabit Layer 2 Duvar Montaj Endüstriyel Ethernet Switch
- Tüm bağlantılar için, M12 vidalı soketli bağlantı ile yüksek güvenlik
- MV-Ring, 20 msn kısa sürede ring arızası kurtarma
- EN50155 standardı iel tam uyumluluk
- Static multicast filtering, GMP Snooping desteği
- Saldırı engelleme, ve port trafiği kontrol fonksiyonları
- RIP, OSPF, PIM Layer 3 routing protokol desteği
- VLAN, Qos, Trunking yönetim fonksiyonları ve Port mirroring
- -40 ~ 70°C çalışma sıcaklık aralığı
- IP40 koruma sınıfı
- Metal kasa
|
Software function |
|
|
Switch Properties
|
Supports Rate limit, Trunking, flow control, VLAN, IEEE 802.1Q VLAN Broadcast storm suppression |
|
Redundancy Protocols |
Support MW-Ring patent redundancy technique (failure recovery time <20ms) Support MSTP/RSTP, EAPS |
|
Multicast
|
IGMP Snooping Support static multicast filtering |
|
Routing |
Support RIPv1/v2, RIPng, OSPFv1/v2, Support PIM-SM, PIM-DM Support static routing protocol |
|
Service quality management |
Supports SP and WRR queuing. Support QoS setting |
|
Management and maintenance |
Supports CLI, Telnet and Web management methods, Support SNMPv1/v2c Supports IP/MAC address conflict alarm Support power off, power alarm, port alarm Support trunking Support log viewing Support Link-check and NTP |
|
Technical parameters |
|
|
Protocol Standard |
IEEE802.3(Ethernet), IEEE802.3u (100Base-TX&100Base-FX), IEEE802.3x (Flow Control), IEEE802.3ab (1000Base-T), IEEE802.1(STP), IEEE802.1w (RSTP), IEEE802.1Q (VLAN), IEEE802.1p (Priority), IEEE802.1x(Visiting Control) |
|
Switch capability |
|
|
Priority Queues |
8 |
|
VLAN Number |
4096 |
|
multicast groups |
256 |
|
MAC Table Size |
16K |
|
Backplane bandwidth |
24Gbps |
|
Switch Delay |
<5μs |
|
Interface |
|
|
Gigabit ports |
Port numbers:12 |
|
Interface type: M12 |
|
|
Baud rate: 10/100/1000MBase-TX Self-adaption. |
|
|
Console port |
RS232, M12 interface |
|
Terminal block for power input |
M12 terminal |
|
LED Indicator Light |
|
|
Back panel LED lights |
Interface indicator light: LINK/ACT; SPEED |
|
Power indicator light: PWR |
|
|
Communication distance |
|
|
Twisted-pair |
100m(CAT5/CAT5e cable) |
|
Power |
|
|
Input power |
DC24V(18-36VDC)；DC48V（36-72VDC）； |
|
Power consumption |
<15W@(MAX) |
|
Overload protection |
support |
|
In-versed protection |
support |
|
Redundancy protection |
support |
|
Working Environment |
|
|
Operating temperature |
-40°C~85°C |
|
Storage temperature |
-40°C~85°C |
|
Ambient humidity |
5%~95% (no condensation) |
|
Physical Characteristics |
|
|
Shell |
IP60 protection, aluminium alloy shell |
|
Installation |
Wall-mounting |
|
Dimension |
180mm×170mm×50.5mm |
|
Industry standard |
|
|
EMC |
EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5 |
|
Impact |
IEC60068-2-27 |
|
Falling |
IEC60068-2-32 |
|
Shock |
IEC60068-2-6 |
|
Warranty |
|
|
Warranty |
5 Years |
|
Certification |
CE, FCC, RoHS |
| Kodu | Model | Açıklama |
|---|---|---|
| Admas7212G-M12-12GT-DC24 | Admas7212G-M12-12GT-DC24 | 12x1Gbit M12 Layer2 Switch, Aux=18-36Vdc |
| Admas7212G-M12-12GT-DC48 | Admas7212G-M12-12GT-DC48 | 12x1Gbit M12 Layer2 Switch, Aux=36-72Vdc |
| Admas7212G-M12-12GT-DC110 | Admas7212G-M12-12GT-DC110 | 12x1Gbit M12 Layer2 Switch, Aux=50-160Vdc |
